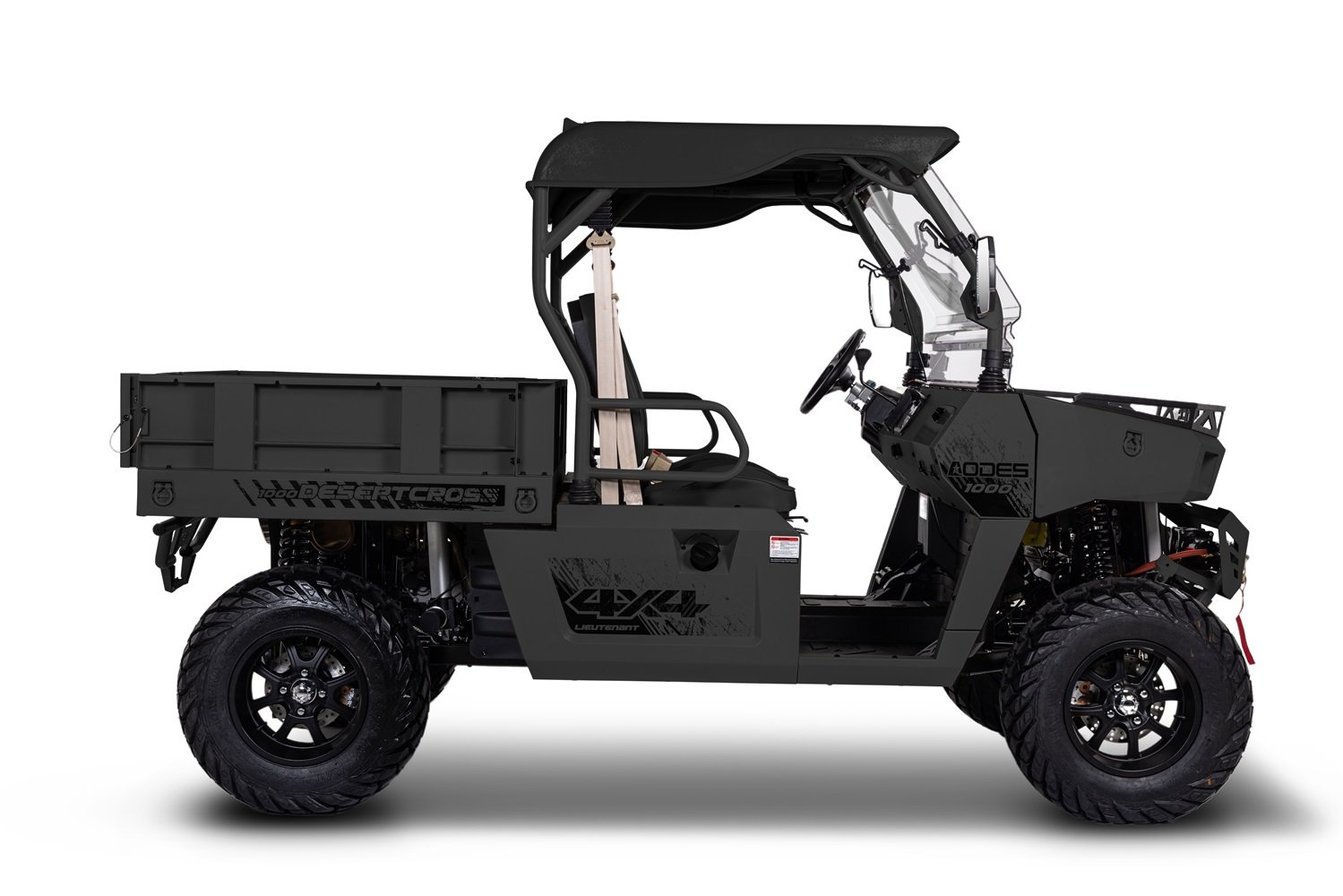

Aodes Desertcross 800-3 w/Rear Jump Seats

STANDARD FEATURES

4-Stroke Engine with Water Cooling

• CVT Shaft Driven Transmission

• Dual Disc Brakes

• Double Wishbone Independent Suspension

• Electric Dump Bed

DIMENSIONS

• Overall length: 3339mm

• Overall width: 1782mm

• Overall height: 1935mm

• Cargo box: 1076×1561×260(mm)

• Climbing ability: ≥40°

• Approach angle: 62°

• Departure angle: 79°

• Ground clearance: 340mm

• Wheel base: 2322mm

• Wheel track: 1356mm

ENGINE

Engine type: V-Two-cylinder, 4-stroke,SOHC, water cooling

• Number of valves: 8(mechanical adjustment)

• Cylinder diameter: 91 mm

• Piston stroke: 61.5 mm

• Displacement: 799.6 cm3

• Compression ratio: 10.3:1

• Maximum power: 44Kw/6000rpm

• Maximum torque: 73N.m/5000 rpm

• Transmission type: CVT

• Drive train: Shaft driven/single auto-lock differential

• Gearbox type: Dual range(H/L) with park, neutral and reverse

• Damper travel: F120mm/R160mm

• Maximum speed: 60mph

CHASSIS

Brake type: Dual disc brake

• Front Tire: 27×9-14

• Rear Tire: 27×11-14

• Suspension type: Double wishbone independent suspension

*$599 S&H Fee is additional.

*$999 fee for rear jump seats.
