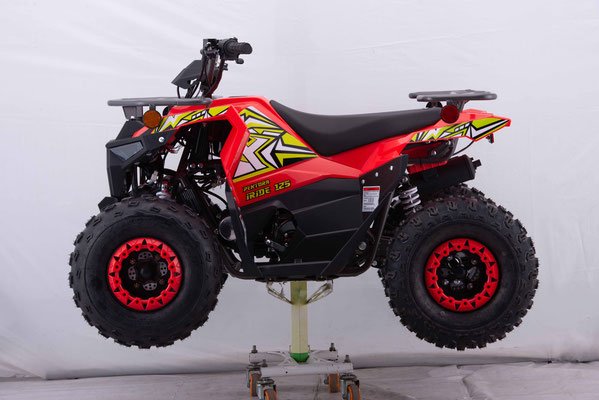

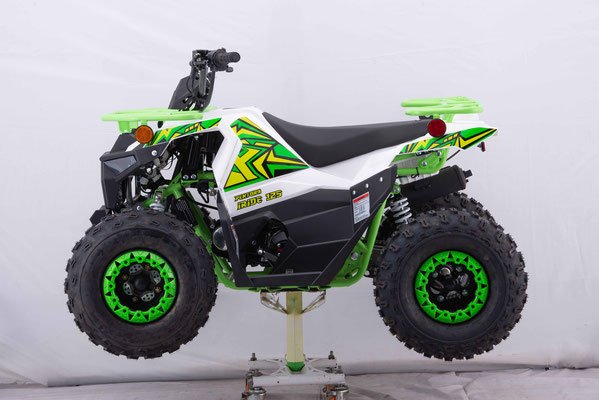

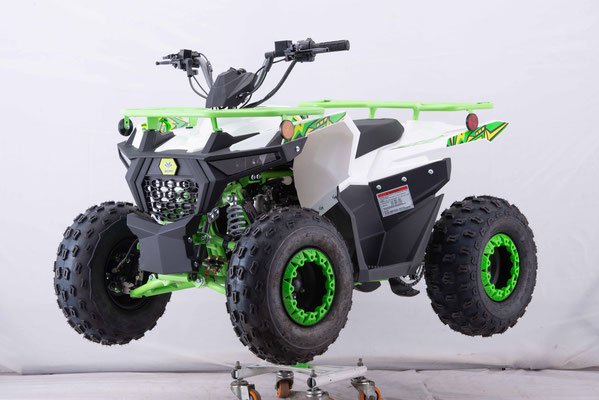

Pentora IRIDE 125cc ATV
ITEMS
Engine Mode ZS154FMI-5
Engine Type Single cylinder,4-stroke,air-cooling, camshaft upward, with balance shaft, tilting (10°leaned)
Displacement (ml)123.67
Max Power (kw/r/min)〔6.3（1±10%/) (7500（1±5%）〕
Max Torque (N.m/r/min)〔8.8（1±10%）〕/〔5500（1±5%）〕
Compression Ratio 9.0:1
Bore and Stroke(mm×mm) 54×54
Ignition method CDI
Lubrication method Pressure and Splash
Lubricating oil 15W/40-SE
Starting method ELECTRIC-START
Clutch method Automatic Wet Multi-Plate
Gearshift Method Constant mesh, two stage transmission ,4-speed Gearshift
TRANSMISSION chain
Spark A7RTC
Atv size1430×965×950
Wheelbase mm 970±20mm
Wheels distance mm front 750±15mm/ rear 760±15mm
Seat height mm 700±15mm
Clearance mm 180
Minimum turning circle radius mm2500±500mm
Sprocket Front 428-14; rear ：428-42
Brake Front & Rear disc brake
Brake method Front &Rear hand brake
Rim Front and Rear 8 inch
Tire Front：18×7-8/Rear ：18×9-8
Front suspension oil dumper/270mm
Rear suspension oil dumper/285mm
Height from foot pedal to seat mm 445±15mm
Front light2-12V/25W
Tail light LED
Carb PZ19
Oil tank 7L
Frame Double beam welded frame
Rear swing arm Tube and plate structure
Max loading kg82
N W kg109
G W kg131
