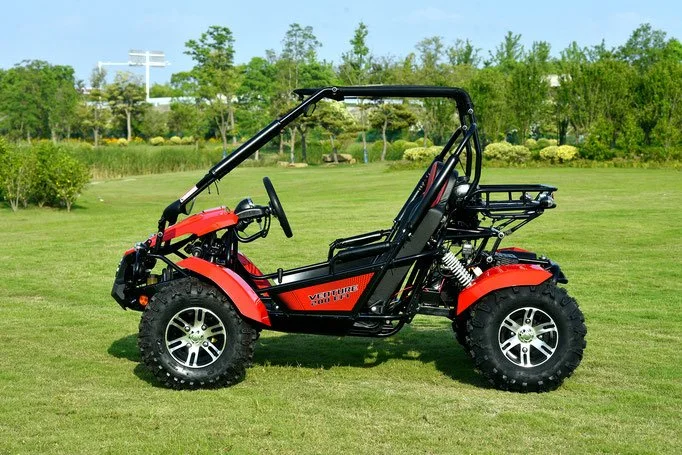

Venture 200 EFI Go Kart
Vehicle Overall Length 89.8 in. (2281mm)Overall Width62.5 in. (1588mm)Overall Height57.5 in.（1460mm）Front Tire19×7-8Rear Tire22×10-10Wheelbase 60.6 in.(1540mm)Min. ground clearance2.8 inch (71.1mm)Dry Weigh529lbs (240kg)Front Suspension Independent Mcpherson Rear Suspension,Drag arm suspensionFront BrakeVentilated Hydraulic DIscRear BrakeVentilated Hydraulic DIscFuel Tank Capacity2.3gal (8.5L)Battery 12V 9AhMaximum Speed38mile (60km/h)Engine Engine TypeFour-Sroke, Single CylinderDisplacement 168.9 ccBore & Stroke 61 × 57.8 mmCompression Ratio9.2：1Fuel SystemElectronic Fuel Injection (EFI)IgnitionElectronic Control Unit (ECU)TransmissionAutomatic F-N-RDrive TrainCVT belt, Chain driveCoolingAir coolingMaximum power (Kw /r/min)8.3KW/8000RPMMaximum Torque (Nm /r/min)11N·m/6000RPM
